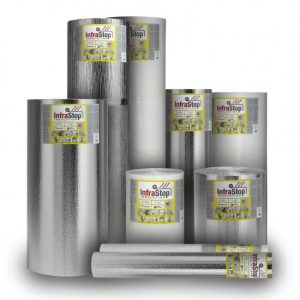

InfraStop® 16″ x 100′ Staple Tab Double Bubble Reflective Foil Insulation
$61.60
- Premium, American Made Reflective Insulation
- Strong and Durable, 7 Layer Construction
- Unaffected by Moisture and Humidity
- Radiant and Vapor Barrier – All in One
- Class 1 / Class A Fire Rated
Please Note: The Finished Dimension is 16″ wide including Tab
Click here for best pricing on 30 or more rolls. InfraStop™ 16” x 125 Staple Tab Double Bubble Reflective Foil Insulation.
InfraStop® 16″ x 100′ Staple Tab Double Bubble Reflective Foil Insulation is available for purchase in increments of 3
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 5 | — | $61.60 |
| 6 - 8 | 6.01 % | $57.90 |
| 9 - 14 | 10.71 % | $55.00 |
| 15 - 20 | 12.34 % | $54.00 |
| 21 - 29 | 13.56 % | $53.25 |
| 30+ | 15.18 % | $52.25 |
- Description
- Additional Info
- InfraStop® Specs
Description
InfraStop® Insulation consists of two outer layers of aluminum foil that reflect over 94% of radiant heat. Each layer of foil is bonded to a tough layer of polyethylene for strength. Two inner layers of insulating bubbles resist conductive heat flow while a center layer of polyethylene gives InfraStop® high reliability and strength.
| Model Number | ISSTFDF16100 |
|---|---|
| Roll Width | 16 Inch |
| Roll Length | 100 Feet |
| Per Roll Square Foot | 133.3 |
| Bubble Layer | Double |
| Edge Detail | Staple Tab |
| Nominal Thickness | 5/16 Inch (.312) |
| Weight | 1.25 oz per square foot |
| Reflectance (IR) | 96% |
| Emittance | 0.04 |
| Temperature Range | -30 to +180 degrees F |
| Fire Rating | Class A / Class 1 |
| Fungi Resistance | No Growth |
| Flame Spread Index (ASTM E-84) | Less than 25 |
| Smoke Developed Index (ASTM E-84) | Less than 50 |
| Pliability | No Cracking / No Delamination |
| Bleeding and Delamination | Passed |
| Linear Shrinkage | None |
| Permeance After Aging | 0.024 |
| Permeance Before Aging | 0.015 |
| Elevated Temperature & Humidity Resistance: Delamination | None |
| Elevated Temperature & Humidity Resistance: Loss of Metalization | None |
| Elevated Temperature & Humidity Resistance: Corrosion | None |
Testing & Certifications
All tests on InfraStop® Insulation products are performed at either nationally
approved independent laboratories or at leading universities. Tests are
performed to current American Society of Testing and Materials (ASTM)
Standards when a standard exists.
Testing results on our Reflective Insulation (Reflective/Bubble/Bubble/
Reflective) product are listed below. For any additional testing information
for this product (or any other), please feel free to call or contact us.
Product Standards
Resistance to fungi or bacteria: InfraStop® does not promote the growth of
fungi or bacteria.
Specification compliance: InfraStop® is covered under the Federal Minimum Standards Code for reflective insulation (HH-I-1252B) for all H.U.D. and F.H.A. projects.
Testing and Certification Documents
- Thermal Performance ASTM C1363
- Thermal Performance of Wall Systems ASTM C1363
- Thermal Performance ASTM C335
- Thermal Performance of Crawl Space ASTM C1363
- Hot Surface Performance ASTM C411
- Heat Transfer (Heat Flow Up, Down, Horizontal) ASTM C1363
- Thermal Performance of InfraStop™ and Fiberglass in Walls ASTM C1363
- Heat Transfer of Air-Handling Ducts with InfraStop™
- Flame Spread and Smoke Density ASTM E84
- Fungus Resistance Mil-Std 810B Method 508
- Pliability Test
- Sound Absorption Test ASTM C423-90a and ASTM E795-83
- Sound Transmission Loss ASTM E90-90 and ASTM E413-87
- Water Vapor Transmission ASTM E96
- Tensile Strength
- Emittance Testing
- Thermal Performance of Water Heater Jackets
- Intertek: Surface Burning Characteristics of Building Materials ASTM E84-08
(Taped Joint Detail) Test Report # 3166908SAT-012 - Intertek: Surface Burning Characteristics of Building Materials ASTM E84-08
(Unslit) Test Report # 3166908SAT-011 - R&D Services: Resistance to the Growth of Fungi ASTM C1338-00 Test Report
# RD072713FR - State of California
- State of California Licensed Insulation Manufacturer
- State of Minnesota: Filed with Minnesota Insulation Standards
Program - State of Wisconsin: Wisconsin Material Approval, Safety and Buildings
Division Approval # 920088-1 - R&D Services Emittance Testing
- R&D Services: Physical Properties Sheet Width, Length, Pliability, Water Vapor
Permanence and Aged Water Vapor Permanence - R&D Services: Water Vapor Transmission Test ASTM-E96 (Dessicant Method
